Structural Integrity Load Calculations and Foundation Types for the Perfect Cabin
Building the perfect cabin requires more than just selecting a scenic location and a beautiful design. The structural integrity of a cabin is critical for its longevity, safety, and resilience against environmental forces. This article explores the key engineering principles involved in cabin construction, including structural integrity, load calculations, and foundation types. By understanding these elements, homeowners and builders can ensure a stable and durable structure that stands the test of time.
1. Structural Integrity: The Backbone of Cabin Design
Key Elements of Structural Integrity
Structural integrity refers to the ability of a cabin to withstand external and internal forces without collapsing or undergoing significant deformation. The primary factors that contribute to a structurally sound cabin include: Material Selection – Choosing high-quality materials such as pressure-treated wood, engineered beams, and reinforced steel ensures durability. Materials like kiln-dried logs are preferred for log cabins, as they reduce shrinkage and warping over time.
Load Distribution – Properly distributing weight through the foundation, walls, and roof prevents structural failure. Well-engineered trusses and support beams help manage loads effectively.
Seismic and Wind Resistance – In regions prone to earthquakes and strong winds, reinforced framing, cross-bracing, and hurricane ties are essential. Engineered lumber and metal connectors add strength to the structure.
Moisture Management – Preventing water damage through vapor barriers, treated wood, and proper drainage systems extends the life of the cabin. Without adequate moisture control, wooden structures may deteriorate rapidly due to rot and mold.
Thermal Expansion and Contraction – Wood and other materials expand and contract with temperature changes. Proper allowances for these shifts help prevent cracks and structural weaknesses.
A well-engineered cabin should meet or exceed local building codes, ensuring compliance with safety standards and reducing the risk of future repairs.
Case Study: Structural Failures in Cabin Construction
A study by the National Association of Home Builders (NAHB) found that 30% of cabin structural failures are due to inadequate load distribution and poor foundation work. One notable example occurred in Alaska, where a log cabin built on improperly compacted soil developed severe foundation cracks within five years, leading to costly repairs exceeding $50,000. A redesigned version with proper soil preparation and reinforced pilings eliminated future structural issues.
2. Load Calculations: Understanding Forces Acting on a Cabin
A cabin’s structure must be designed to handle various loads, including:
Dead Loads – The weight of the building materials (logs, beams, flooring, roofing, etc.).
Live Loads – Temporary or movable forces like furniture, occupants, and snowfall.
Wind Loads – The pressure exerted by wind, which varies based on location and elevation.
Seismic Loads – Forces generated by earthquakes, which require specialized engineering techniques in certain areas.
Snow and Rain Loads – Accumulated snow or heavy rainfall can put significant stress on the roof, requiring specific load-bearing calculations.
Example Load Calculation for a 1,000-Square-Foot Cabin
For a typical 1,000-square-foot cabin, the estimated loads may include:
Dead Load: 15 pounds per square foot (psf) × 1,000 sq. ft. = 15,000 lbs
Live Load(Furniture, Occupants): 40 psf × 1,000 sq. ft. = 40,000 lbs
Snow Load(Cold Climate): 50 psf × 1,000 sq. ft. = 50,000 lbs
Wind Load(Moderate Wind Zone): 20 psf × 1,000 sq. ft. = 20,000 lbs
Total anticipated load = 125,000 lbs
A properly engineered cabin should have a foundation and support system designed to handle at least 1.5 times the estimated total load to ensure safety and durability.
3. Foundation Types: Choosing the Right Base for Your Cabin
The foundation of a cabin plays a crucial role in ensuring stability and durability. There are several types of foundations, each suited to different soil conditions, climates, and structural requirements.
A. Concrete Slab Foundation
Best For: Warm climates, level ground
Pros: Cost-effective, low maintenance, provides strong support
Cons: Poor insulation in cold climates, difficult to modify after construction
A concrete slab foundation costs between $4–$8 per square foot, making it a budget-friendly choice for many homeowners.

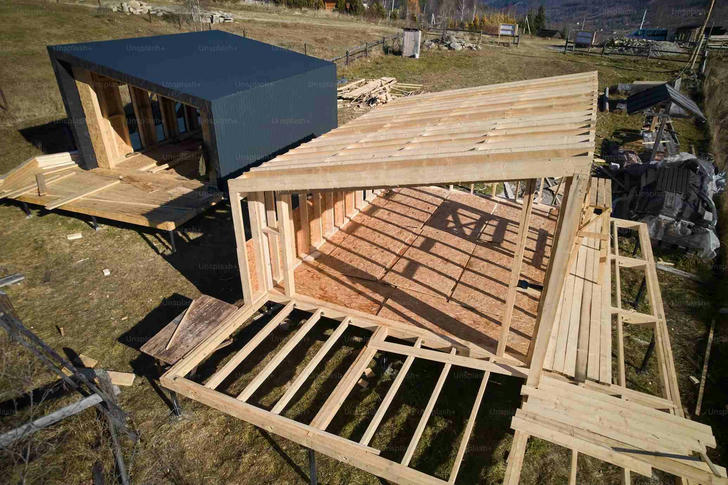

B. Pier and Beam Foundation
Best For: Uneven terrain, flood-prone areas
Pros: Provides ventilation, easier to repair, minimizes ground moisture issues
Cons: Requires regular maintenance, susceptible to shifting
Pier and beam foundations cost between $8,000–$15,000 for a standard 1,000-square-foot cabin.
C. Full Basement Foundation
Best For: Cold climates, homes needing extra storage
Pros: Adds usable space, provides insulation, protects against frost heave
Cons: Higher cost, requires professional engineering
A full basement foundation typically costs $30,000–$50,000, depending on depth and reinforcement requirements.
D. Frost-Protected Shallow Foundation (FPSF)
Best For: Cold climates, energy-efficient designs
Pros: Prevents frost heave, reduces heating costs, eco-friendly
Cons: Requires precise insulation placement, not suitable for unstable soils
FPSFs reduce heating energy costs by up to 15% compared to traditional foundations.
4. Additional Structural Considerations
Soil Testing and Preparation
Before choosing a foundation, a soil test should be conducted to determine its load-bearing capacity and drainage properties. In areas with expansive clay soils, additional reinforcement may be needed to prevent shifting.

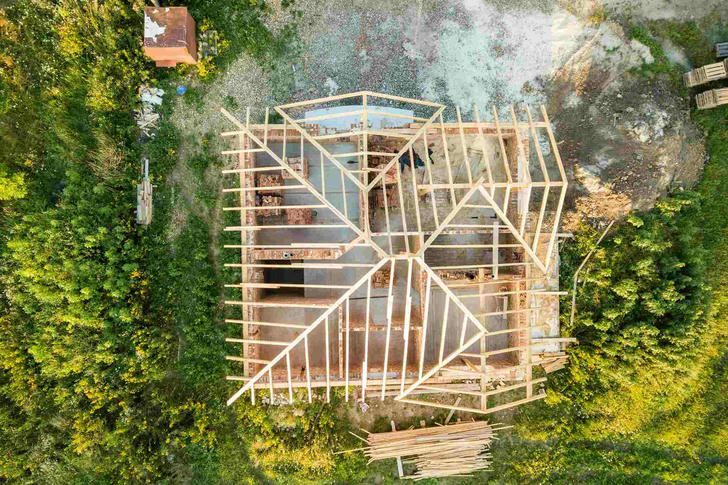

Roofing and Insulation

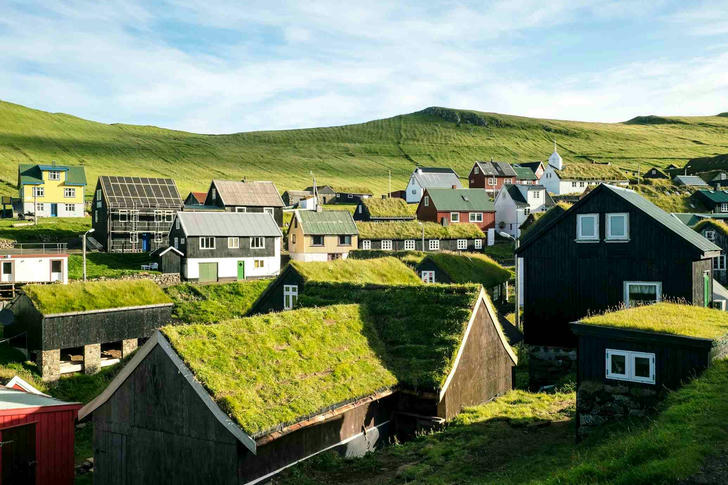

The choice of roofing materials also impacts structural integrity. Metal roofs are lightweight and durable, making them a good option for cabins in snowy regions. Green roofs (covered with vegetation) provide natural insulation and reduce environmental impact.
5. Case Study: A Sustainable Cabin in Colorado
A recent cabin project in Colorado highlights the importance of proper engineering. The owners selected a pier and beam foundation due to the uneven terrain and installed cross-bracing for wind resistance. They also used Structural Insulated Panels (SIPs) to enhance insulation. The result? A cabin with 50% lower energy costs and superior structural resilience, even in heavy snow conditions.
Conclusion
Engineering the perfect cabin requires meticulous planning, from selecting the right foundation to calculating structural loads and accounting for environmental factors. Whether opting for a traditional log cabin or a modern prefabricated structure, understanding these engineering principles will lead to a safer, more resilient, and longer-lasting cabin. By integrating structural science with sustainable materials, homeowners can create the ultimate retreat that withstands the test of time.
